# Summary Statistics and Statistical Tests

## Objectives

1. Obtain summary statistics using base R, psych, and dplyr
2. Obtain summary statistics to compare groups
3. Explore variable correlation
4. Statistically compare the means of two groups using the t-Test and Mann-Whitney U Test
5. Compare multiple groups using ANOVA and the Kruskal-Wallis Test

## Summary Statistics

There are many packages available in R that provide functions to summarize data. Here, I will primarily demonstrate dplyr, which we explored in the data manipulation module, and psych. I tend to use dplyr for data manipulation and summarization tasks. However, pysch is also very useful as it allows you to obtain a variety of summary statistics quickly.

First, you will need to read in the required packages. If you haven’t installed them, you will need to do so. Also, you will need to load in some example data. We will work with the high_plains_data.csv file. The elevation (“elev”), temperature (“temp”), and precipitation (“precip2”) data were extracted from raster grids provided by the PRISM Climate Group at Oregon State University. The elevation data are provided in feet, the temperature data represent 30-year annual normal mean temperature in Celsius, and the precipitation data represent 30-year annual normal precipitation in inches. The original raster grids have a resolution of 4-by-4 kilometers and can be obtained here. I also summarized percent forest (“per_for”") from the 2011 National Land Cover Database (NLCD). NLCD data can be obtained from the Multi-Resolution Land Characteristics Consortium (MRLC). The link at the bottom of the page provides the example data and R Markdown file used to generate this module.

library(dplyr)
library(psych)
library(car)
library(asbio)
setwd("D:/ossa/summary_stats")
hp_data <- read.csv("high_plains_data.csv", sep=",", header=TRUE, stringsAsFactors=TRUE)

### Global Summary Statistics using dplyr and psych

I do not need all of the columns to work through the examples. So, I am using dplyr to select out only the required variables into a new data frame. Once the required columns have been extracted, I use the summary() function from base R to obtain summary information for each column. The minimum, 1st quartile, median, mean, 3rd quartile, and maximum values are returned for continuous variables. For factors, the factor levels and associated counts are returned.

Calling levels() on a factor column will print the list of factor levels. This data set contains county-level data across eight states.

Generally, I find that it is a good idea to use summary() to inspect data prior to performing any analyses.

hp_data2 <- as.data.frame(hp_data %>% select(NAME_1, STATE_NAME, TOTPOP10, POPDENS10, per_for, temp, elev, precip2))
summary(hp_data2)
NAME_1           STATE_NAME     TOTPOP10         POPDENS10
Lincoln County :  6   Kansas      :105   Min.   :    460   Min.   :   0.30
Sheridan County:  5   Nebraska    : 93   1st Qu.:   3307   1st Qu.:   2.70
Custer County  :  4   South Dakota: 66   Median :   7310   Median :   6.40
Douglas County :  4   Colorado    : 64   Mean   :  31723   Mean   :  48.62
Garfield County:  4   Montana     : 56   3rd Qu.:  19687   3rd Qu.:  17.60
Grant County   :  4   North Dakota: 53   Max.   :1029655   Max.   :3922.60
(Other)        :462   (Other)     : 52
per_for              temp              elev           precip2
Min.   : 0.00119   Min.   : 0.3863   Min.   : 251.7   Min.   : 2.302
1st Qu.: 0.17940   1st Qu.: 6.1287   1st Qu.: 478.8   1st Qu.: 4.413
Median : 1.21404   Median : 8.7381   Median : 755.0   Median : 5.398
Mean   : 6.11726   Mean   : 8.5053   Mean   :1026.4   Mean   : 5.782
3rd Qu.: 6.31987   3rd Qu.:10.8541   3rd Qu.:1413.6   3rd Qu.: 6.831
Max.   :44.73928   Max.   :14.3880   Max.   :3475.8   Max.   :11.449

levels(hp_data2$STATE_NAME) [1] "Colorado" "Kansas" "Montana" "Nebraska" "North Dakota" [6] "South Dakota" "Utah" "Wyoming"  The base R head() and tail() functions can be used to print the first five or last five rows of data, respectively. If you would like to print a different number of rows, you can use the optional n argument. Similar to summary(), these functions are useful for inspecting data prior to an analysis. head(hp_data2) NAME_1 STATE_NAME TOTPOP10 POPDENS10 per_for temp 1 Hinsdale County Colorado 843 0.8 34.962703710 1.410638 2 Kiowa County Colorado 1398 0.8 0.002119576 11.159492 3 Kit Carson County Colorado 8270 3.8 0.021467393 10.179698 4 Las Animas County Colorado 15507 3.2 11.687192860 10.439925 5 Lincoln County Colorado 5467 2.1 0.043238069 9.573578 6 Logan County Colorado 22709 12.4 0.124508994 9.749204 elev precip2 1 3334.739 8.002461 2 1269.637 3.842018 3 1348.005 4.354140 4 1834.354 4.247577 5 1564.500 3.762286 6 1278.252 4.252787 tail(hp_data2) NAME_1 STATE_NAME TOTPOP10 POPDENS10 per_for temp elev 484 Natrona County Wyoming 75450 14.1 1.6269573 6.736350 1851.832 485 Niobrara County Wyoming 2484 0.9 1.1470432 8.011750 1382.148 486 Platte County Wyoming 8667 4.2 2.3411135 8.072507 1573.332 487 Sweetwater County Wyoming 43806 4.2 0.1793681 5.412980 2092.429 488 Washakie County Wyoming 8533 3.8 2.7601385 6.963218 1595.407 489 Weston County Wyoming 7208 3.0 4.6158960 7.501733 1361.416 precip2 484 3.233924 485 3.835656 486 3.847026 487 2.323045 488 3.260599 489 3.751864 The describe() function from the psych package can be used to obtain a variety of summary statistics for all or individual columns of data. By default it will return the mean, standard deviation, median, trimmed mean, median absolute deviation, minimum, maximum, range, skewness, kurtosis, and standard error for continuous data. describe(hp_data2) vars n mean sd median trimmed mad min NAME_1* 1 489 197.06 113.04 199.00 196.78 145.29 1.00 STATE_NAME* 2 489 3.81 2.01 4.00 3.70 2.97 1.00 TOTPOP10 3 489 31722.60 92877.01 7310.00 11504.06 7227.67 460.00 POPDENS10 4 489 48.61 239.36 6.40 10.64 6.82 0.30 per_for 5 489 6.12 10.04 1.21 3.73 1.73 0.00 temp 6 489 8.51 3.09 8.74 8.55 3.55 0.39 elev 7 489 1026.36 717.62 754.99 918.55 496.27 251.72 precip2 8 489 5.78 1.87 5.40 5.61 1.77 2.30 max range skew kurtosis se NAME_1* 396.00 395.00 0.01 -1.19 5.11 STATE_NAME* 8.00 7.00 0.34 -0.90 0.09 TOTPOP10 1029655.00 1029195.00 5.94 42.42 4200.04 POPDENS10 3922.60 3922.30 10.87 149.71 10.82 per_for 44.74 44.74 1.91 2.52 0.45 temp 14.39 14.00 -0.11 -0.79 0.14 elev 3475.78 3224.06 1.20 0.62 32.45 precip2 11.45 9.15 0.80 0.23 0.08 To obtain individual statistics, you can use the summarize() function from dplyr. In the examples below, I am obtaining the mean, standard deviation, and median for the elevation data. The result can be saved to a variable for later use. hp_data2 %>% summarize(mn = mean(hp_data2$elev))
mn
1 1026.362
hp_data2 %>% summarize(sd = sd(hp_data2$elev)) sd 1 717.6236 hp_data2 %>% summarize(med = median(hp_data2$elev))
med
1 754.9867

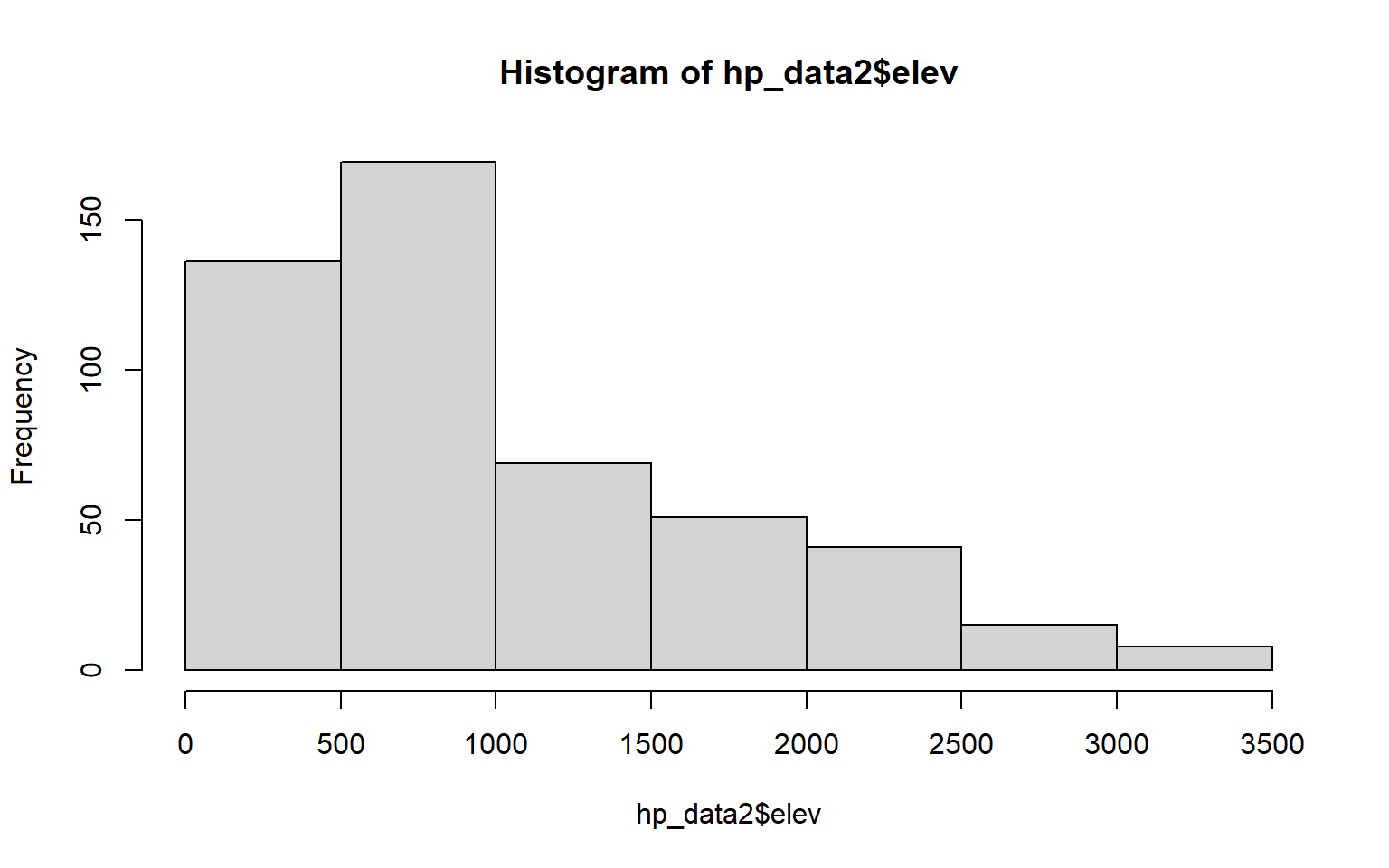

The base R hist() function can be used to generate a histogram to visualize the distribution of a single continuous variable. In a later module, you will learn to make more refined histograms using the ggplot2 package; however, this base R function can be useful for simple data exploration.

hist(hp_data2$elev) ### Summary Statistics by Group As opposed to obtaining global summary statistics, you may be interested in summarizing data by group for comparison. The describeBy() function from the psych package expands upon describe() to allow for grouping. In the example below, I have obtained summary statistics by state. By default the result will be returned as a list object; however, you can set the mat argument to TRUE to obtain the output as a data frame. for_stat <- describeBy(hp_data2$per_for, hp_data2$STATE_NAME, mat=TRUE) print(for_stat) item group1 vars n mean sd median trimmed X11 1 Colorado 1 64 18.341749 15.181901 22.7831594 17.9144943 X12 2 Kansas 1 105 2.769612 3.304699 1.4923449 2.2367985 X13 3 Montana 1 56 10.324312 10.899905 5.9975489 9.0668248 X14 4 Nebraska 1 93 1.294360 1.434022 0.8298879 1.0485710 X15 5 North Dakota 1 53 0.707462 1.087484 0.3632199 0.4430518 X16 6 South Dakota 1 66 1.495026 4.730695 0.3260004 0.4975848 X17 7 Utah 1 29 18.941720 10.148612 20.5519685 18.8203153 X18 8 Wyoming 1 23 6.201908 5.870400 4.6158960 5.4205776 mad min max range skew kurtosis se X11 19.0951614 0.001186869 44.739277 44.738091 -0.05466347 -1.5799113 1.8977377 X12 2.1437061 0.007282816 13.132781 13.125498 1.20217682 0.5142227 0.3225056 X13 8.0034310 0.027169554 34.771343 34.744174 0.86246043 -0.7133704 1.4565610 X14 1.0702851 0.006612731 6.504017 6.497405 1.42202432 1.4851247 0.1487012 X15 0.4160004 0.014679896 5.570716 5.556036 2.70381660 7.4230217 0.1493775 X16 0.3670117 0.004006820 33.882768 33.878761 5.43933498 31.9477734 0.5823083 X17 10.8379308 2.723746424 37.800489 35.076743 -0.01016540 -1.2541347 1.8845499 X18 4.4314006 0.179368100 25.384380 25.205012 1.49953605 2.4117033 1.2240631 Alternatively, you can use the dplyr group_by() function to obtain summary statistics by group. In the example below I am piping the data frame into group_by() followed by summarize() to obtain the mean county percent forest by state. If you would like to calculate a summary statistic for more than one column at once, you can use the summarize_all() function as opposed to summarize() as demonstrated in the second code block. hp_data2 %>% group_by(STATE_NAME) %>% summarize(mn = mean(per_for)) # A tibble: 8 x 2 STATE_NAME mn <fct> <dbl> 1 Colorado 18.3 2 Kansas 2.77 3 Montana 10.3 4 Nebraska 1.29 5 North Dakota 0.707 6 South Dakota 1.50 7 Utah 18.9 8 Wyoming 6.20  hp_data2 %>% group_by(STATE_NAME) %>% summarize_all(funs(mean)) # A tibble: 8 x 8 STATE_NAME NAME_1 TOTPOP10 POPDENS10 per_for temp elev precip2 <fct> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> 1 Colorado NA 78581. 146. 18.3 6.85 2190. 5.14 2 Kansas NA 27173. 49.3 2.77 12.6 554. 7.58 3 Montana NA 17668. 7.35 10.3 5.80 1282. 4.73 4 Nebraska NA 19638. 42.3 1.29 9.82 694. 6.43 5 North Dakota NA 12690. 8.49 0.707 5.11 550. 4.68 6 South Dakota NA 12336. 14.0 1.50 7.72 596. 5.58 7 Utah NA 95306. 117. 18.9 8.27 1937. 4.39 8 Wyoming NA 24505. 6.37 6.20 5.88 1848. 4.14 ## Statistical Methods We will now explore some common statistical tests. Since this is not a statistics course, I will not demonstrate complex tests; however, if you need to conduct more complex tests than those demonstrated here, I think you will find that the syntax will be similar to the examples provided. ### Correlation The base R cor() function allows for the calculation of correlation between pairs of continuous variables. The following methods are available: • Pearson Correlation Coefficient: parametric and assesses the linear correlation between two variables (similar to R-squared) • Spearman’s Rank Correlation Coefficient: nonparametric measure based on ranks • Kendal Rank Correlation Coefficient: nonparametric measure based on ranks and reported as probabilities Parametric tests have assumptions relating to data distribution. For example, the data may be assumed to be normally distributed. If input data do not meet the distribution requirements, the tests may be invalid or misleading. In contrast, nonparametric tests do not have distribution assumptions and often rely on the ranks or order of data point values as opposed to their actual value or magnitude. They can serve as a more appropriate test when distribution assumptions are violated. In the example below, I have compared the correlation between population density, percent forest cover, temperature, elevation, and precipitation using all three methods. Large positive values indicate direct or positive correlation between the two variables while negative values indicate indirect or inverse correlation between the two variables. You may have noticed that the diagonal values are 1 for all methods. This is because a variable is perfectly correlated with itself. If you would like to visualize or graph variable correlations, I highly recommend the corrplot package. cor(hp_data2[,4:8], method="pearson") POPDENS10 per_for temp elev precip2 POPDENS10 1.00000000 0.01008319 0.1034935 0.03646341 0.0569110 per_for 0.01008319 1.00000000 -0.4199889 0.76004048 0.1356033 temp 0.10349346 -0.41998889 1.0000000 -0.52669255 0.4051434 elev 0.03646341 0.76004048 -0.5266925 1.00000000 -0.3306361 precip2 0.05691100 0.13560330 0.4051434 -0.33063615 1.0000000 cor(hp_data2[,4:8], method="spearman") POPDENS10 per_for temp elev precip2 POPDENS10 1.0000000 0.2595500 0.2586090 -0.2622042 0.4927968 per_for 0.2595500 1.0000000 -0.2366128 0.2818702 0.2454769 temp 0.2586090 -0.2366128 1.0000000 -0.4462037 0.3763700 elev -0.2622042 0.2818702 -0.4462037 1.0000000 -0.5538748 precip2 0.4927968 0.2454769 0.3763700 -0.5538748 1.0000000 cor(hp_data2[,4:8], method="kendall") POPDENS10 per_for temp elev precip2 POPDENS10 1.0000000 0.1809036 0.1699107 -0.1929554 0.3508058 per_for 0.1809036 1.0000000 -0.1529384 0.1401321 0.1943746 temp 0.1699107 -0.1529384 1.0000000 -0.3186832 0.2619598 elev -0.1929554 0.1401321 -0.3186832 1.0000000 -0.4153005 precip2 0.3508058 0.1943746 0.2619598 -0.4153005 1.0000000 ### t-Test A t-test is used to statistically assess whether the means of two groups are different. The null hypothesis is that the means are not different, and the alternative hypothesis is that they are different. In the example, I first use dplyr to subset out only counties in Utah or North Dakota since we can only compare two groups with a t-test. I then use the base R t.test() function to perform the test. Specifically, I assess whether the mean annual county temperatures are different for the two states. I provide a formula and a data set. Once the test executes, the result will be printed to the console. A p-value of ~4e-8 is obtained, which is much lower than 0.05. This indicates a rejection of the null hypothesis at a 95% confidence. So, mean annual temperature by county in these two states are suggested to be statistically different. hp_sub <- hp_data2 %>% filter(STATE_NAME == "Utah" | STATE_NAME== "North Dakota") t.test(temp ~ STATE_NAME, data=hp_sub) Welch Two Sample t-test data: temp by STATE_NAME t = -7.0968, df = 33.012, p-value = 3.976e-08 alternative hypothesis: true difference in means is not equal to 0 95 percent confidence interval: -4.069117 -2.255890 sample estimates: mean in group North Dakota mean in group Utah 5.109584 8.272087  ### Mann-Whitney U Test A t-test is a parametric test. As discussed above, this means that it has some assumptions. Specifically, the t-test assumes that the two groups are independent of each other, samples within groups are independent, the dependent variable is normally distributed, and the two groups have similar variance. It is likely that at least some of these assumptions are violated. For example, due to spatial autocorrelation, it is unlikely that samples are independent. The Mann-Whitney U Test offers a nonparametric alternative to the t-test with relaxed distribution assumptions. However, it is still assumed that the samples are independent. The example below provides the result for the comparison of Utah and North Dakota. A statistically significant p-value is obtained, again suggesting that mean annual temperature by county is different between the two states. wilcox.test(temp ~ STATE_NAME, data=hp_sub) Wilcoxon rank sum test with continuity correction data: temp by STATE_NAME W = 169, p-value = 6.265e-09 alternative hypothesis: true location shift is not equal to 0 ### ANOVA What if you would like to compare more than two groups? This can be accomplished using analysis of variance or ANOVA. There are many different types of analysis of variance that vary based on study design, such as One-Way ANOVA, Two-Way ANOVA, MANOVA, Factorial ANOVA, ANCOVA, and MANCOVA. Here, I will simply demonstrate One-Way ANOVA, which is used to compare the means of a single variable between groups. However, if you need to implement one of the more complex methods, you can use similar syntax. Similar to the example above, I am assessing whether the mean annual temperature by county is different between states. However, now I am assessing all states in the data set as oppose to only two. The null hypothesis is that no pair of means are different while the alternative hypothesis is that at least one pair of means is different. The test results in a statistically significant p-value, suggesting that at least one pair of states have statistically different mean annual temperature by county. However, the test does not tell us what pair or pairs are different. Following a statistically significant ANOVA result, it is common to use a pair-wise test to compare each pair combination. There are different methods available. Here, I am using the Tukey’s Honest Significant Difference method, made available by the TukeyHSD(), function to perform the comparisons. If the p-value is lower than 0.05 and the confidence interval does not include zero within its range, the states are suggested to be statistically significantly different at the 95% confidence level. fit <- aov(temp ~ STATE_NAME, data=hp_data2) summary(fit) Df Sum Sq Mean Sq F value Pr(>F) STATE_NAME 7 3356 479.5 176.9 <2e-16 *** Residuals 481 1303 2.7 --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 TukeyHSD(fit) Tukey multiple comparisons of means 95% family-wise confidence level Fit: aov(formula = temp ~ STATE_NAME, data = hp_data2)$STATE_NAME
North Dakota-Colorado     -1.73668701 -2.667431873 -0.8059421 0.0000006
South Dakota-Colorado      0.87163656 -0.007538505  1.7508116 0.0538864
Montana-Kansas            -6.84215105 -7.671409522 -6.0128926 0.0000000
North Dakota-Kansas       -7.53077022 -8.375196232 -6.6863442 0.0000000
South Dakota-Kansas       -4.92244666 -5.709668399 -4.1352249 0.0000000
Utah-Kansas               -4.36826704 -5.419561536 -3.3169725 0.0000000
Wyoming-Kansas            -6.76281139 -7.916562307 -5.6090605 0.0000000
North Dakota-Montana      -0.68861917 -1.649007653  0.2717693 0.3639826
South Dakota-Montana       1.91970439  1.009205179  2.8302036 0.0000000
Utah-Montana               2.47388401  1.327362809  3.6204052 0.0000000
Wyoming-Montana            0.07933966 -1.161801720  1.3204810 0.9999995
North Dakota-Nebraska     -4.71521921 -5.577726274 -3.8527121 0.0000000
South Dakota-Nebraska     -2.10689565 -2.913481797 -1.3003095 0.0000000
South Dakota-North Dakota  2.60832357  1.683988946  3.5326582 0.0000000
Utah-North Dakota          3.16250319  2.004964184  4.3200422 0.0000000
Wyoming-North Dakota       0.76795883 -0.483367502  2.0192852 0.5734358
Utah-South Dakota          0.55417962 -0.562314593  1.6706738 0.8013743
Wyoming-South Dakota      -1.84036473 -3.053822760 -0.6269067 0.0001347
Wyoming-Utah              -2.39454436 -3.793823612 -0.9952651 0.0000078

Since ANOVA is a parametric method, it has assumptions, similar to the t-test. Specifically, ANOVA assumes that samples are independent, the data and model residuals (i.e., error terms) are normally distributed, and that variance is consistent between groups.

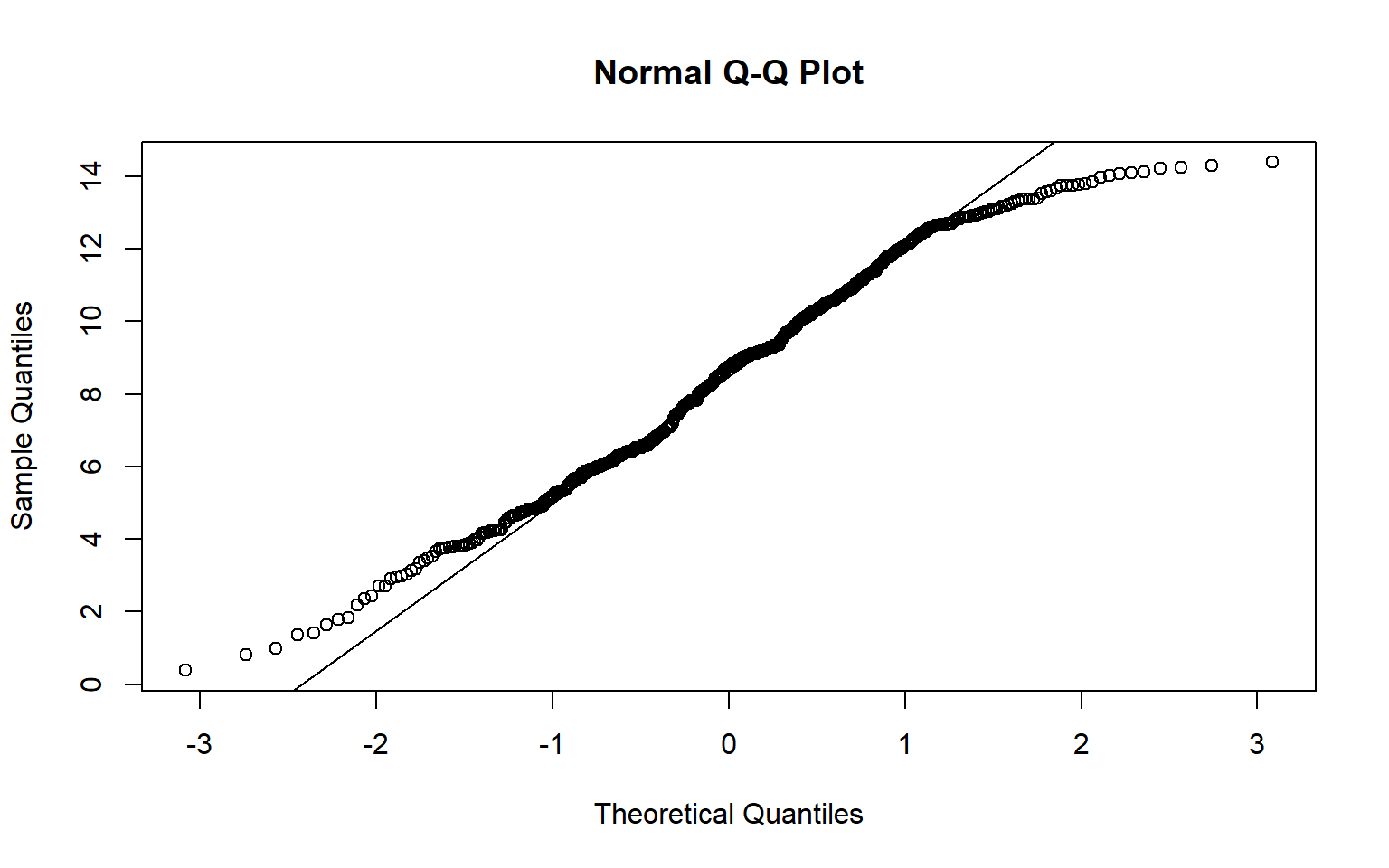

A Q-Q plot can be used to visually assess data normality by comparing the quantiles of the data to theoretical quantiles, or the quantiles the data would have if they were normally distributed. Divergence from the line suggests that the data are not normally distributed.

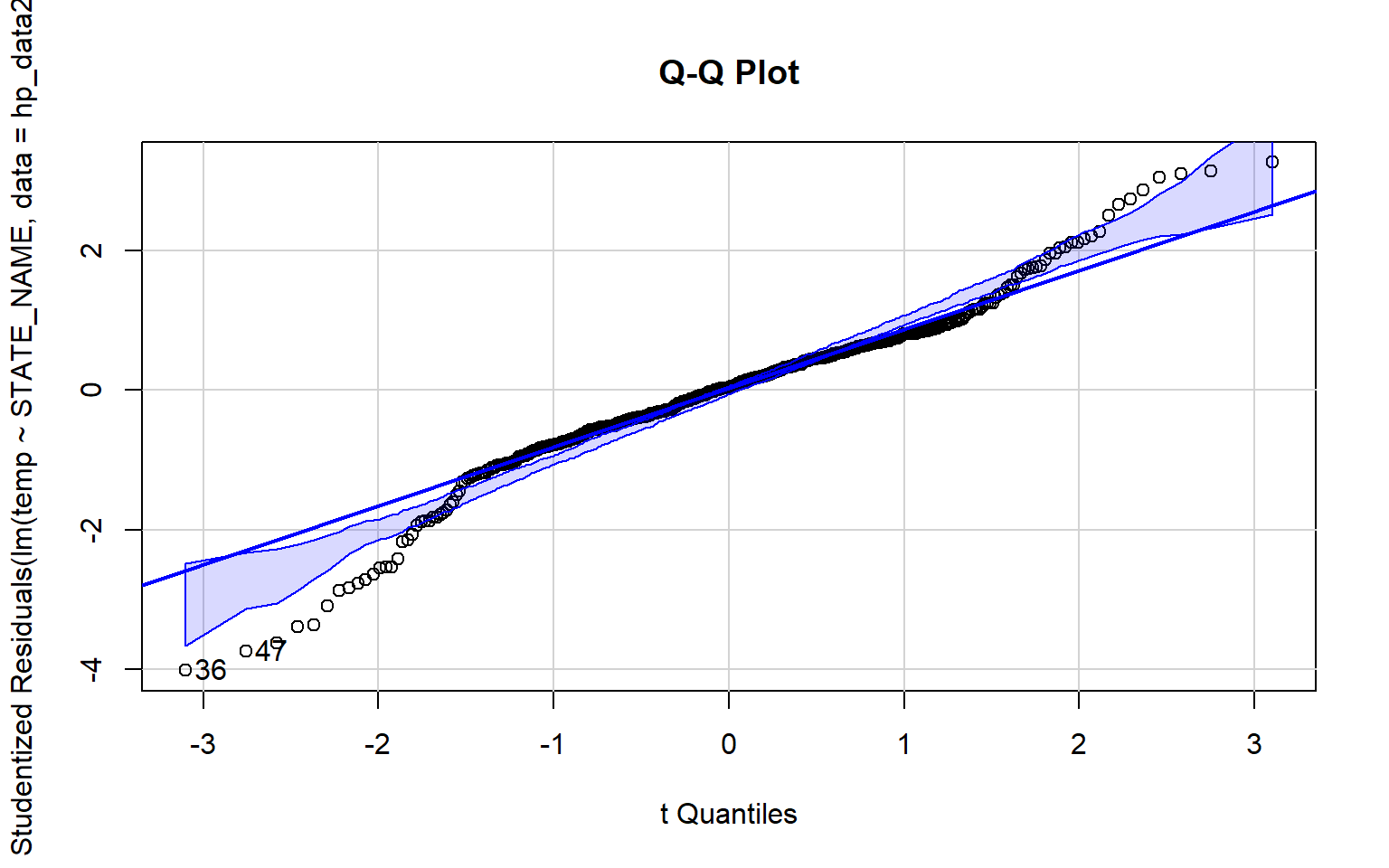

In the examples below I have created Q-Q plots using two different functions: qqnorm() and qqPlot(). The first plot represents the distribution of the temperature data while the second plot represents the distribution of the model residuals. Since the data points diverge from the line, this suggests that the data are not normally distributed and that an assumption of ANOVA is violated.

qqnorm(hp_data2$temp) qqline(hp_data2$temp)

qqPlot(lm(temp~STATE_NAME, data=hp_data2), simulate=TRUE, main="Q-Q Plot", labels=FALSE)

[1] 36 47

The Bartlett Test of Homogeneity of Variance is used to assess whether variance is the same between groups. A statistically significant result, as obtained here, suggests that this assumption is violated.

bartlett.test(temp ~ STATE_NAME, data=hp_data2)

Bartlett test of homogeneity of variances

data:  temp by STATE_NAME
Bartlett's K-squared = 288.27, df = 7, p-value < 2.2e-16

ANOVA is also sensitive to outliers. The Bonferroni Outlier Test is used to determine whether outliers are present. The results in this case do suggest the presence of outliers.

outlierTest(fit)
36 -4.017031         6.8395e-05     0.033445

### Kruskal-Wallis Test

Since many of the assumptions of ANOVA are violated, as highlighted by the analysis above, it would be good to assess difference between groups using a nonparametric alternative. The Kruskal-Wallis Rank Sum Test provides this alternative. Similar to ANOVA, a statistically significant result, as obtained here, suggests that at least one pair of groups are different. It does not tell you what pair or pairs. So, I use the pairw.kw() function from the asbio package to perform a nonparametric pair-wise comparison. A p-value lower than 0.05 and a confidence interval that does not include zero in its range suggest difference between the two groups.

kruskal.test(temp ~ STATE_NAME, data=hp_data2)

Kruskal-Wallis rank sum test

data:  temp by STATE_NAME
Kruskal-Wallis chi-squared = 367.65, df = 7, p-value < 2.2e-16
pairw.kw(hp_data2$temp, hp_data2$STATE_NAME, conf=0.95)

95% Confidence intervals for Kruskal-Wallis comparisons

Diff      Lower      Upper  Decision
Colorado-Kansas           -253.02917 -323.02863 -183.02971 Reject H0
Colorado-Montana            67.86607  -12.90254  148.63468    FTR H0
Kansas-Montana             320.89524  247.85532  393.93515 Reject H0
Kansas-Nebraska            121.87527   59.02134   184.7292 Reject H0
Montana-Nebraska          -199.01997 -273.68094   -124.359 Reject H0
Colorado-North Dakota      102.26769     20.289  184.24638 Reject H0
Kansas-North Dakota        355.29686  280.92101   429.6727 Reject H0
Montana-North Dakota        34.40162  -50.18804  118.99128    FTR H0
Nebraska-North Dakota      233.42159  157.45318  309.38999 Reject H0
Colorado-South Dakota      -19.88068  -97.31718   57.55582    FTR H0
Kansas-South Dakota        233.14848  163.81111  302.48586 Reject H0
Montana-South Dakota       -87.74675 -167.94224   -7.55127 Reject H0
Nebraska-South Dakota      111.27322   40.23025  182.31618 Reject H0
North Dakota-South Dakota -122.14837 -203.56246  -40.73428 Reject H0
Colorado-Utah              -52.97629 -151.78346   45.83088    FTR H0
Kansas-Utah                200.05287  107.45634  292.64941 Reject H0
Montana-Utah              -120.84236 -221.82633   -19.8584 Reject H0
Nebraska-Utah                78.1776   -15.7029  172.05811    FTR H0
North Dakota-Utah         -155.24398 -257.19838  -53.28958 Reject H0
South Dakota-Utah          -33.09561 -131.43484   65.24362    FTR H0
Colorado-Wyoming            57.00272  -50.30765  164.31309    FTR H0
Kansas-Wyoming             310.03188  208.41113  411.65263 Reject H0
Montana-Wyoming            -10.86335 -120.18133   98.45462    FTR H0
Nebraska-Wyoming           188.15662   85.36455  290.94868 Reject H0
North Dakota-Wyoming       -45.26497 -155.48003   64.95008    FTR H0
South Dakota-Wyoming         76.8834  -29.99627  183.76307    FTR H0
Utah-Wyoming               109.97901  -13.26753  233.22555    FTR H0
Kansas-Montana                       0
Kansas-North Dakota                  0
Montana-North Dakota                 1
Kansas-South Dakota                  0
Montana-South Dakota          0.017672
North Dakota-South Dakota      7.8e-05
Kansas-Utah                          0
Montana-Utah                  0.005193
North Dakota-Utah              5.5e-05
South Dakota-Utah                    1
Utah-Wyoming                  0.148743
